Custom Connector Deployment

In continuation to my previous blog on custom connector. Here is the blog on how to deploy connector to a new environment.

To move custom connectors from one environment to another. We have to perform 3 different actions.

1.       Adding connectors to Solutions.

2.       Exporting solutions

3.       Importing solutions in new environment.


Click here to visit Power Automate Portal. Login with admin user credentials.


        •    Click on the “Solutions” tab on the left panel. Please refer image below.








































Note: Custom connectors created outside solutions cannot be added to solutions at this time.



Adding a connector to a solution

To add Custom Connector to Solutions below steps are to be followed.


•       Click on New Solution on top ribbon. Enter necessary details like solution name, version and so on and click on “Create” button.





































•       You should be able to see the newly created solution on the top. You can click and open it.

•       Click on “New” on the top ribbon and select “others” from the sub menu and select “Custom Connector”.





















•       You will now be redirected to a new tab with Connector Designer page.

•       Create your desired connector and click on Update connector on top right corner.

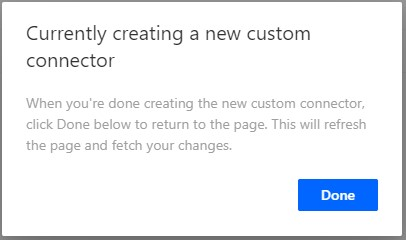

•       Once the connector is created you can visit previous tab and click on the “Done” button in popup.
















•       You should be seeing your newly created connector on top of the solutions window.



Exporting a Solution

•       You can now see all the solutions that are imported to earlier.

•       Click on the eclipse icon (…) besides your solution name and click on “Export”.

•       You can now see a new window with “Before you Export” title.

•       Click on “Publish” if you have made any changes in this flow.

•       Click on “Run” to check if any issues exist.

•       Click on “Next”.


































•       You can now see “Export this Solution” screen.

•       Specify your desired version number.

•       Select “Managed” radio button and click on export. You can see a .zip file downloading.



Importing solutions to new environment

•       You already have the zip filed solution.

•       Click on “Import” from the top ribbon.





•       You will now see a popup to choose the solution file that you downloaded earlier.

•       Click “Next” and then click on import.

You can now see the imported solution in the solutions gallery.
